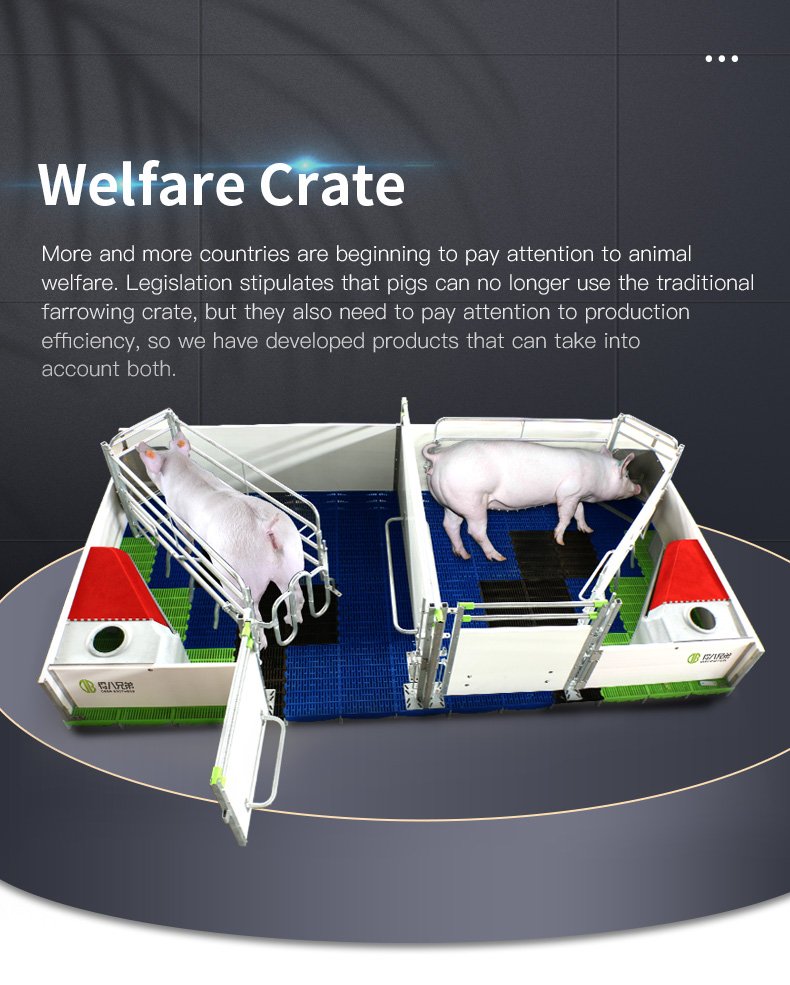

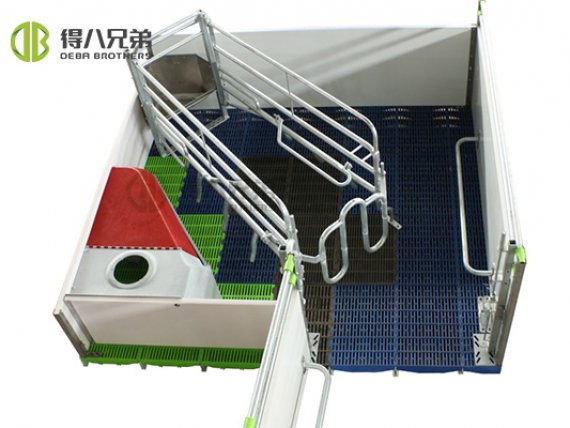

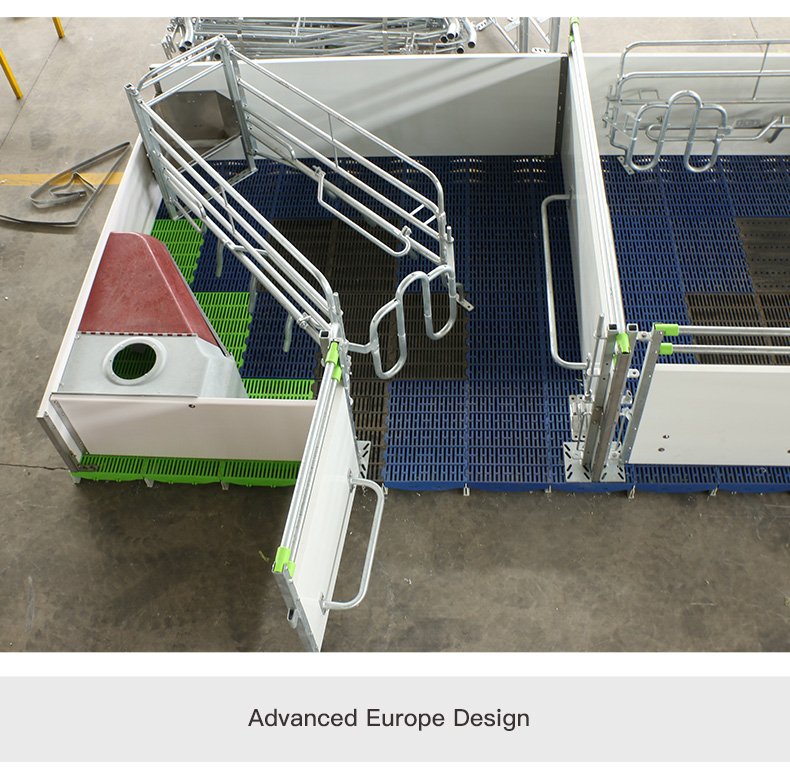

Welfare Crate 1010

Summary:

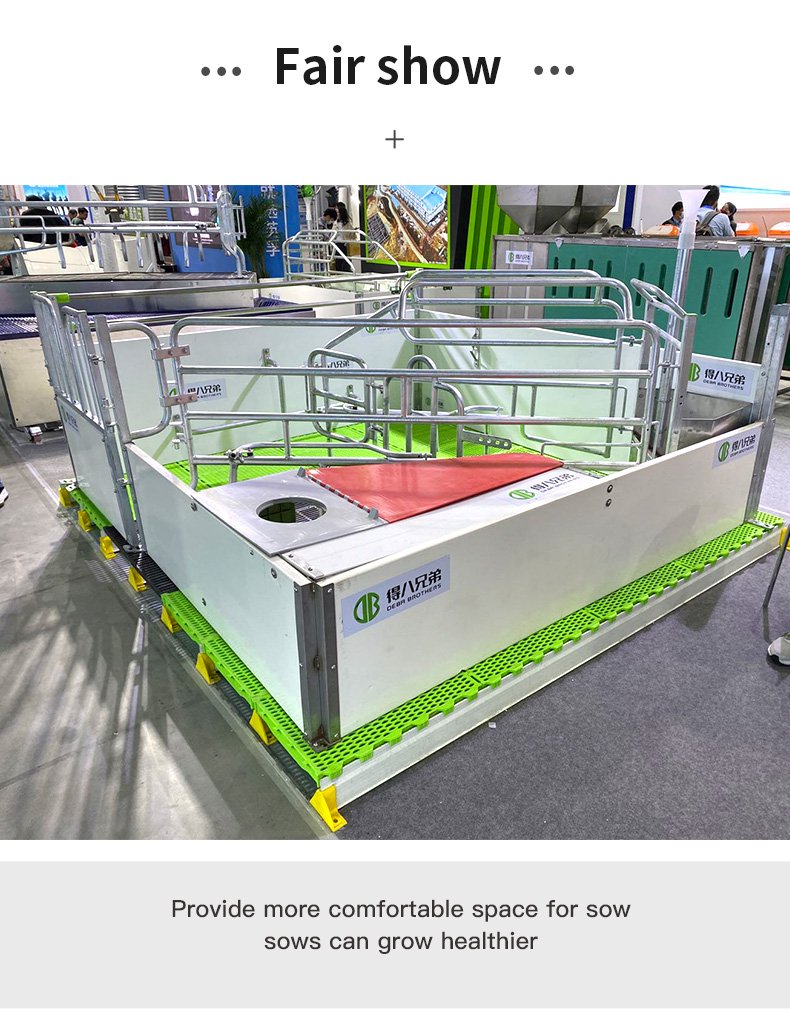

We pay attention to the different needs of different customers all over the world, for those countries tofocus on animal welfare, we provide open crates. Open crate can providemore space for the sows, more comfortable environment,conducive to the growth of sows


PVC详情页_11

PVC详情页_12PVC详情页_13得八产床详情_24得八产床详情_25


得八产床详情_27

得八产床详情_26PVC详情页_14PVC详情页_15

PVC详情页_16

得八产床详情_29

得八产床详情_30

得八产床详情_31

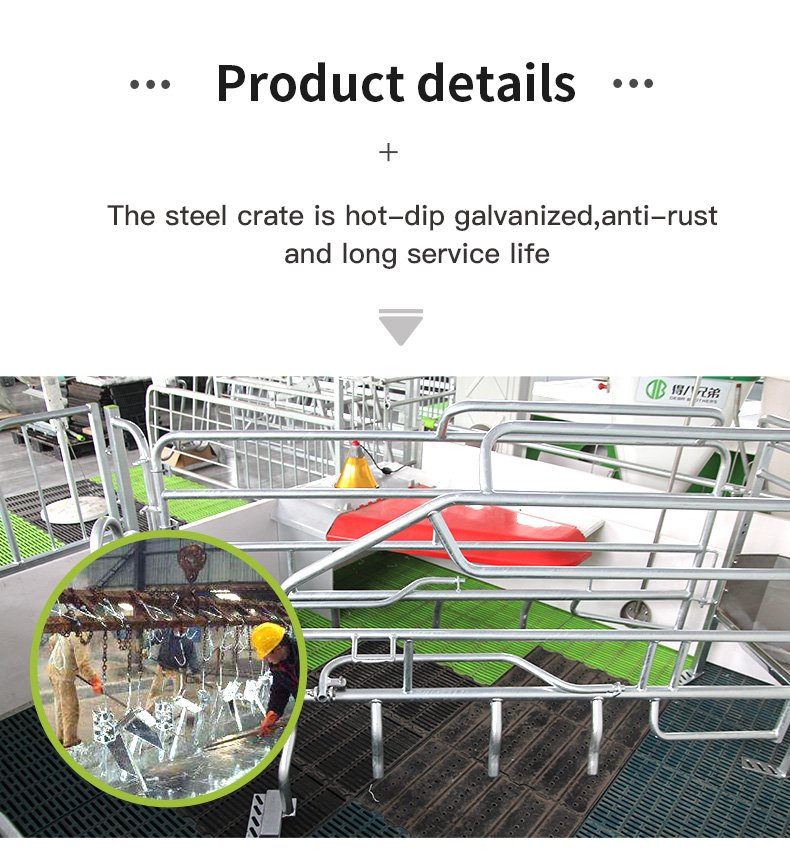

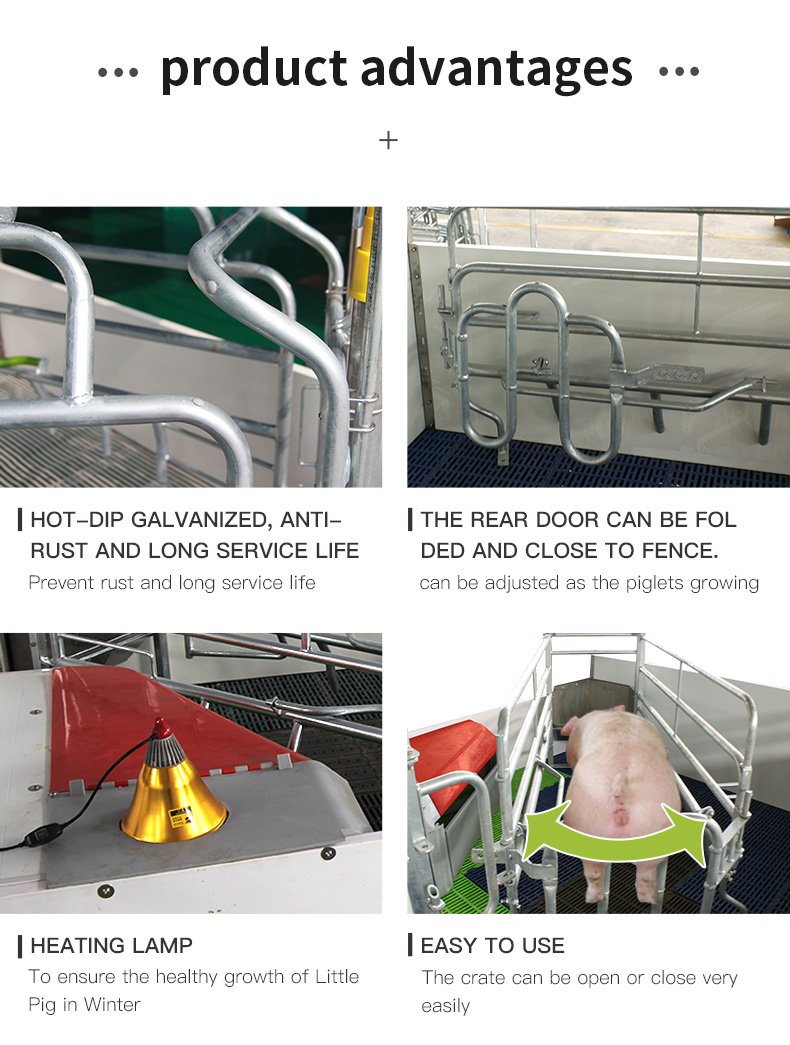

1.The surface was treated by hot-dip galvanization with uniform coating, which give the crate long service life.
2.

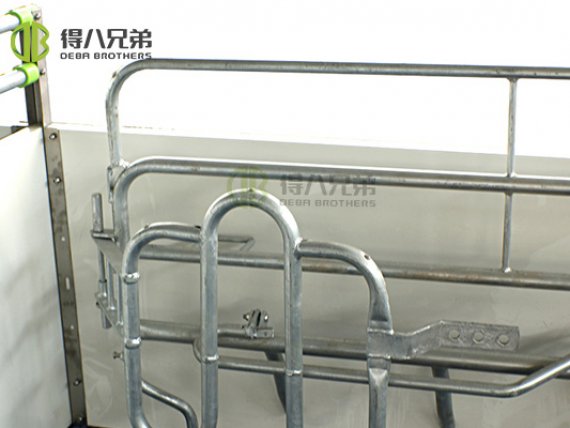

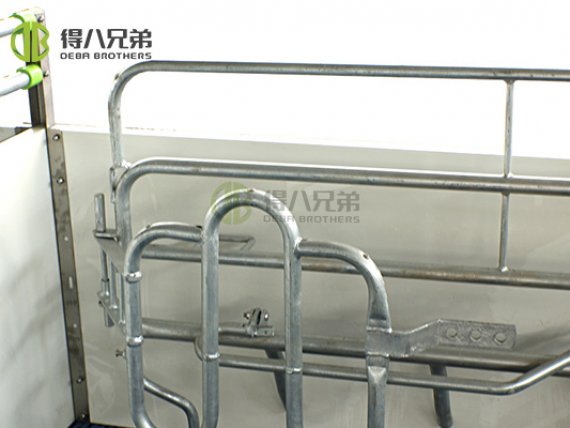

The width of the crate could be adjustable, which make it flexible to different size of the sows.

3.

The height of anti-pressure bar can be adjusted as the piglets growing, to make sure it can protect the piglets all the time.

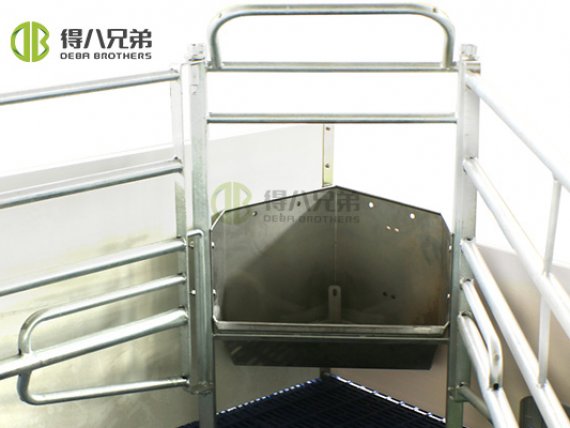

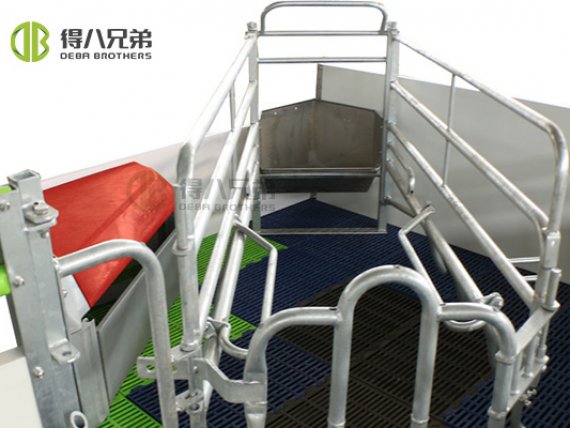

4.The feeder can be rotated, which make it easy to clean.
5.There is a hole on the rear cast iron slat to clear the manure.
6.

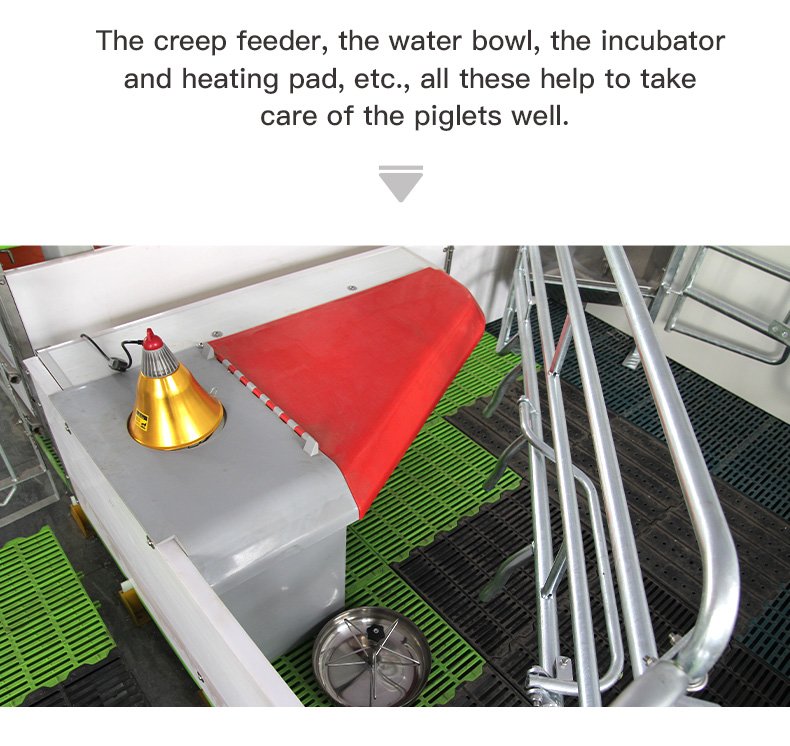

The creep feeder, the water bowl, the incubator and heating pad, etc., all these help to take care of the piglets well.

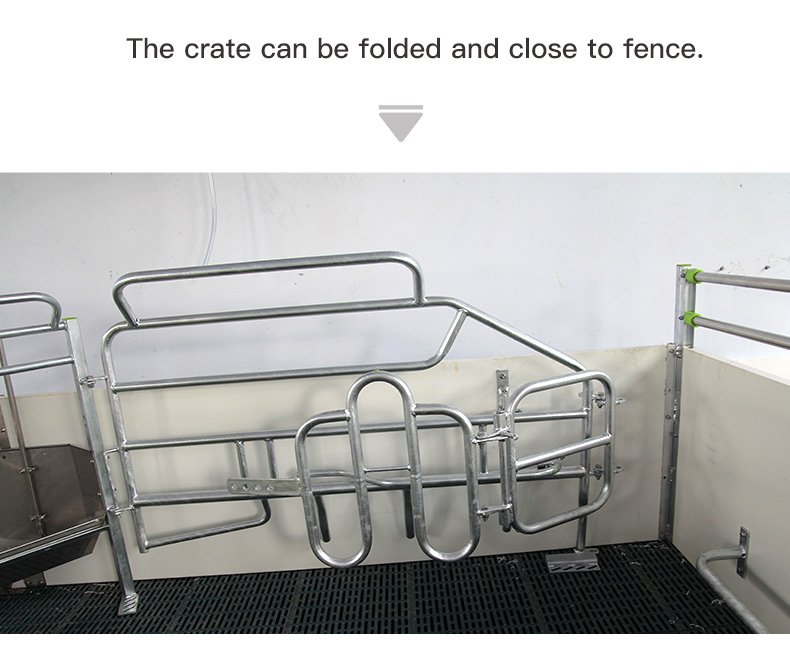

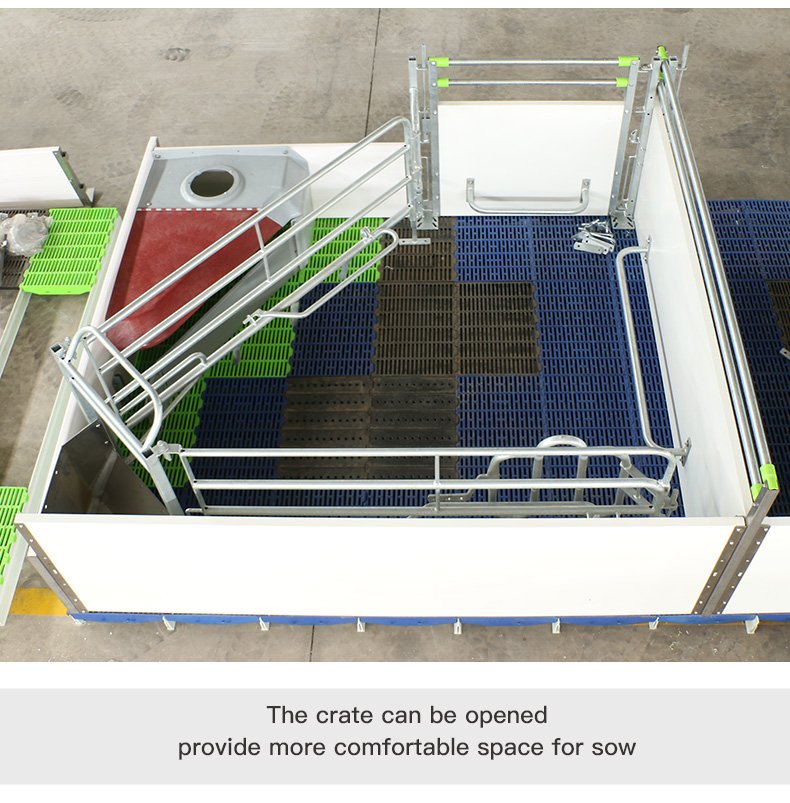

7.Give more space to use

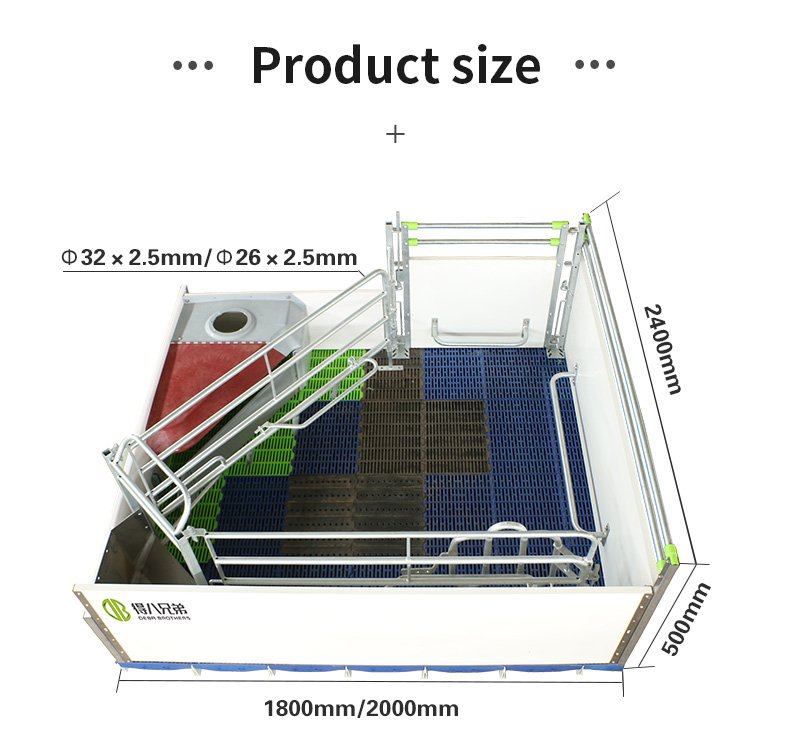

Dimension 2.4*1.8*0.7m
Material Steel
TechnologyWholly hot-dip galvanized
Function Pig  raising
Usage Assembled
FeaturesAnti-corrosion
ApplicationSow and piglet

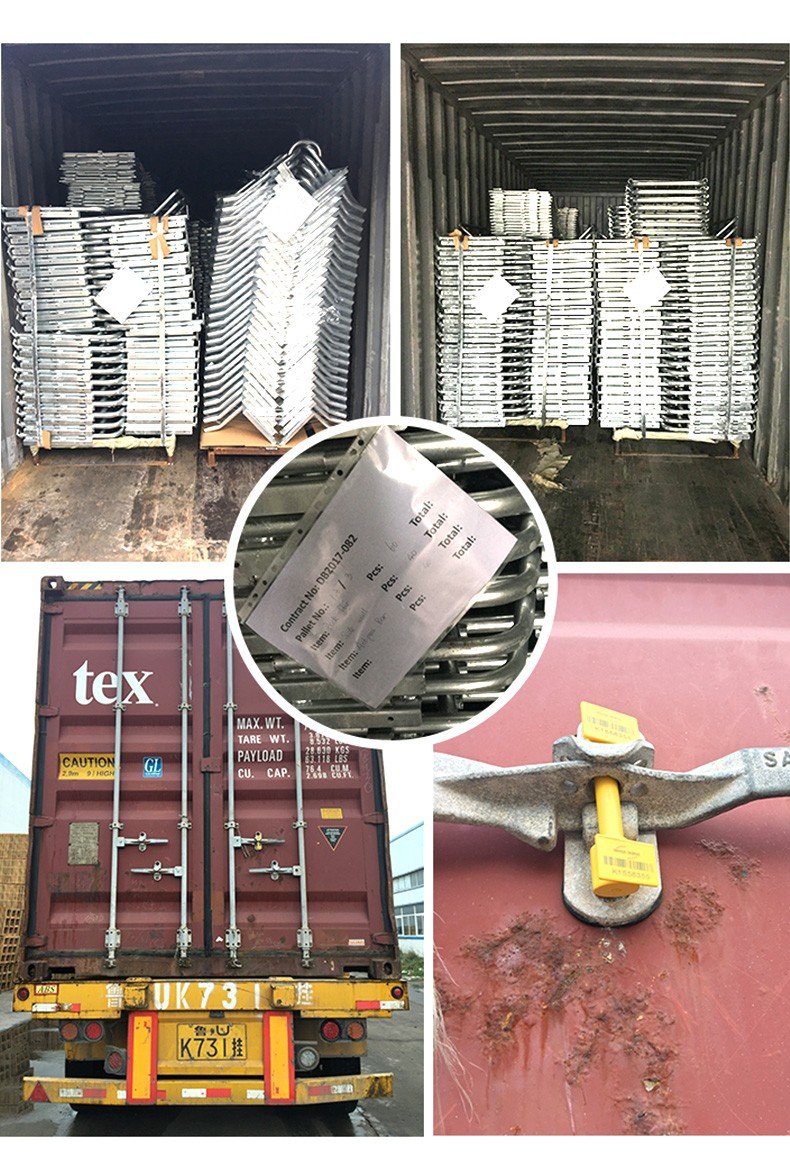

Packaging Pallet
CertificationYes
Warranty   Yes

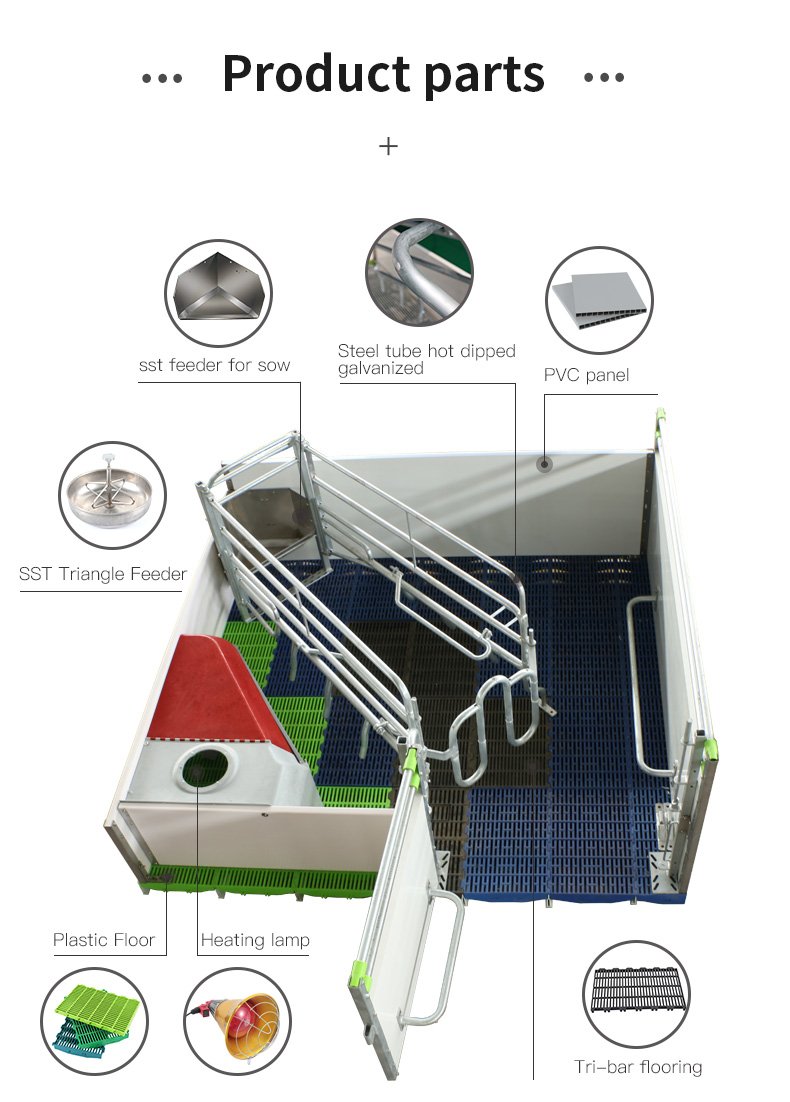

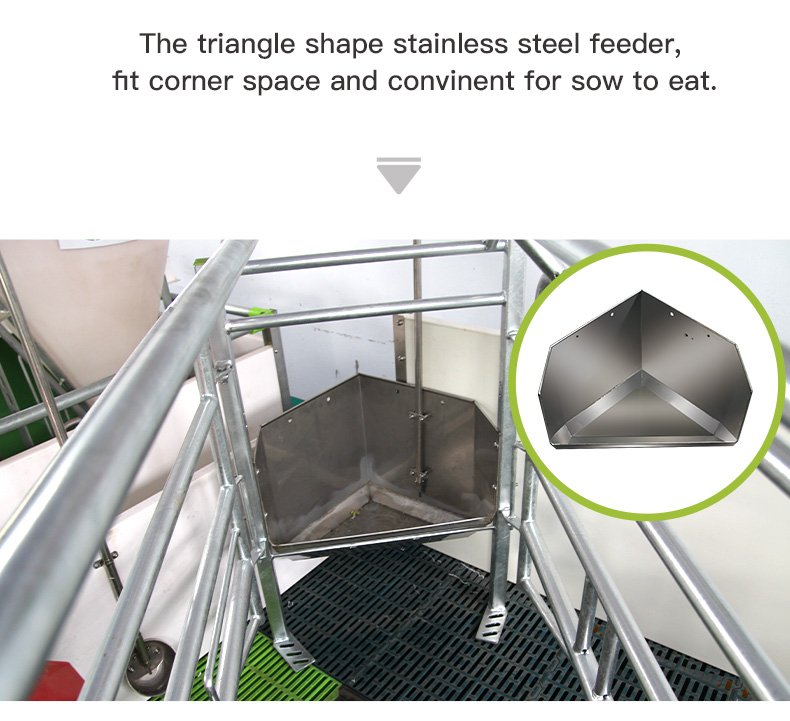

Feeder1 stainless steel (SS) feeder respectively for sow and piglet

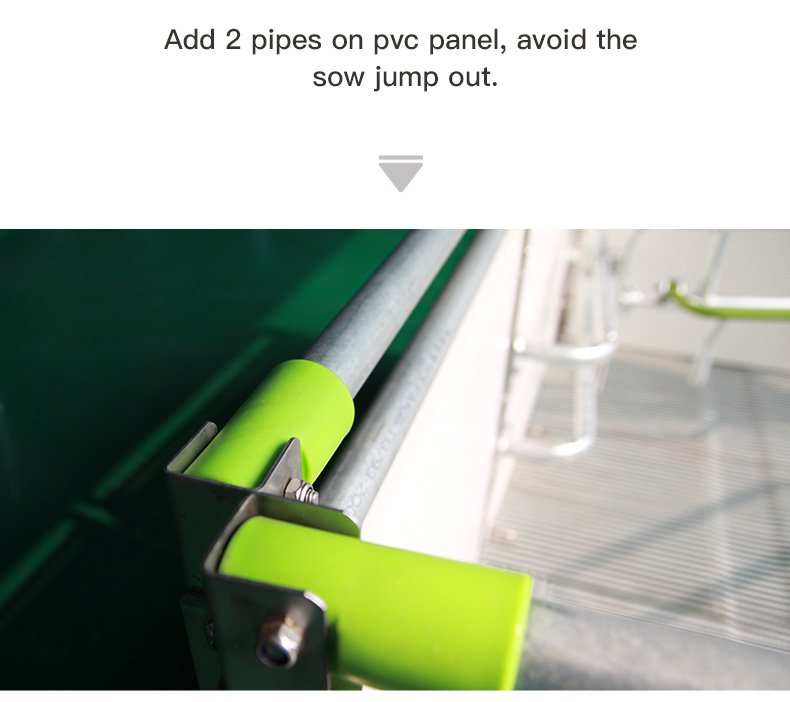

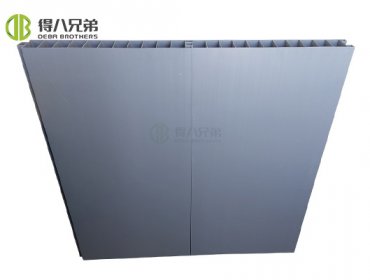

FencePVC board, thickness: 30mm, height: 500mm
Floor600*600 plastic for piglet, 600*600 cast iron for sow
Drinker1 SS drinker (for sow), 1 SS water bowl (for piglet)
Farrowing cageφ32*2.5mm circular-tube farrowing cage
