Weaning Stall_2

Summary:

Piglet nursery stall is a professional equipment for taking care of the piglets which are 35 days old and already weaned. The floor adopts plastic manure dropping board, the faeces can drop through the gaps of the floor. So it can prevent the environmental pollution and disease, and improve the survival rate efficiently. The thermal insulation properties is very well, and the texture is soft and firm. It will not hurt the piglet’s feet. The piglet size is rational which can meet the whole brood of piglets need. The whole stall is very easy to install and no need to be welded. The frame of the rails are made of hot galvanized pipes, which combined with PVC boards. The thickness of the pipe is 2.5mm, and the welds are firm and nice. The two-sided trough and round automatic feeders are all optional.


电子邮件(保育栏)_01

1.

Adopt all-plastic floor, with high strength, skid resistance and no water;

2.

Supporting beam: 120mm glass fiber reinforced plastics (GFRP) support ing beam;

3.

Various specifications can be customized.

电子邮件(保育栏)_02

电子邮件(保育栏)_03

电子邮件(保育栏)_04

电子邮件(保育栏)_05

电子邮件(保育栏)_06

电子邮件(保育栏)_07

电子邮件(保育栏)_08

PVC详情页_11

PVC详情页_12PVC详情页_13得八产床详情_24得八产床详情_25

得八产床详情_28

得八产床详情_27

得八产床详情_26PVC详情页_14PVC详情页_15

PVC详情页_16

得八产床详情_29

得八产床详情_30

得八产床详情_31






1.

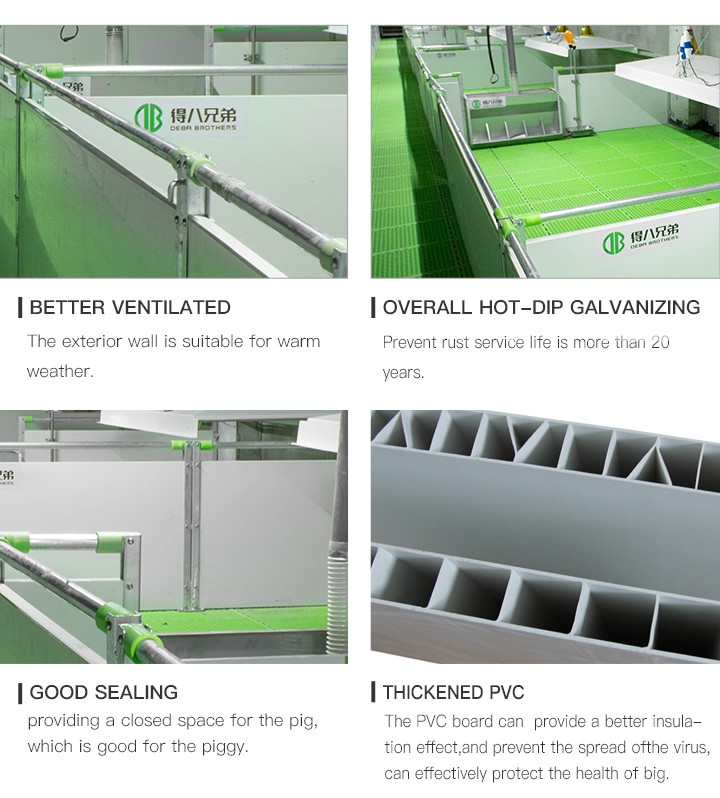

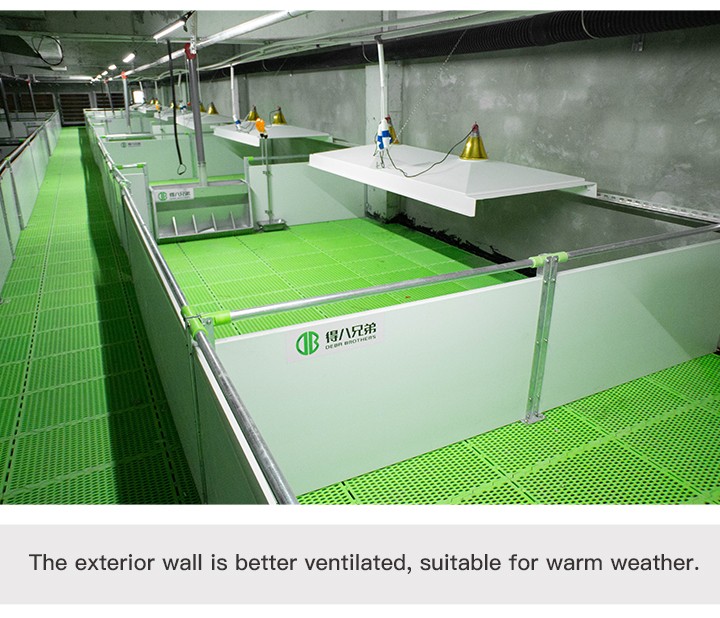

Humanized design,both sides are of PVC fence board, both sides are galvanized steel pipe fence, stall and stall isolation also make sure longitudinal ventilation.

2.

Original raw material engineering PP(Propene Polymer)

3.Compression resistance not less than 160KG.
4.

Easy to install ,clean and disinfect, a good environment for piglets nursing.

5.

If you need piglet nursing crates with other specifications, we also can customize for you.


Dimension

3.0*1.8*0.7m

Material

Steel

TechnologyTechnology
Function

Pig  raising

Usage

Assembled

Features

Anti-corrosion

Application

Piglet

CertificationYes
Capability 10~12pigs
Packaging

Pallet


Fence

PVC board


φ 26×2.5mm circular tube

10mm steel for the lining

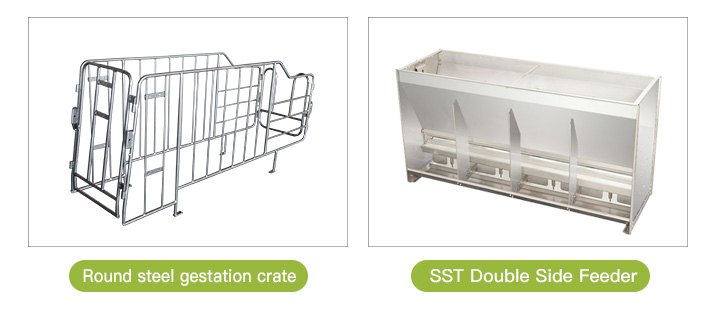

Feeder

Dry-wet feeder


SS double-side feeder
DrinkerStainless steel piglet drinking bowl

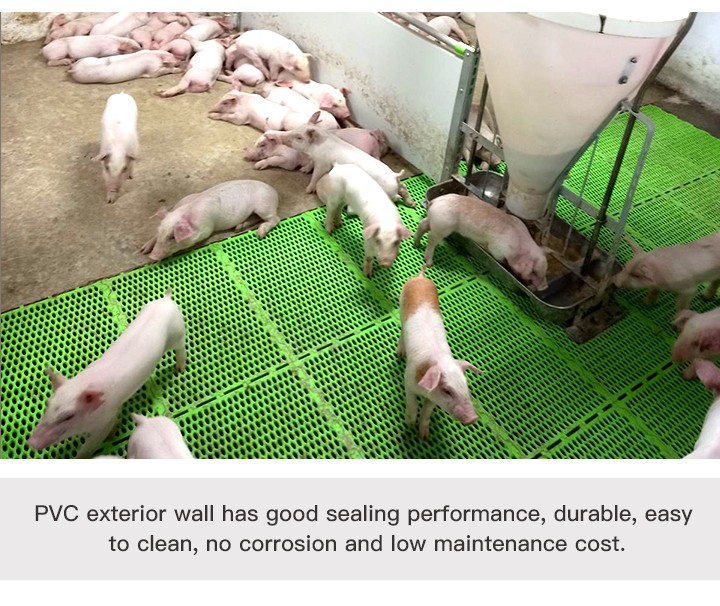

Floor

Plastic leakage dung floor
